Efficient cooling solution to reduce overall energy consumption in data centers.
In-row air conditioner is an intelligent temperature control product used in modular data centers. The unit size is equivalent to standard data cabinets and is usually deployed in a cabinet arrangement, typically side by side with server cabinets. Combined with closed cold and hot channels, it is close to the heat source for efficient cooling. The cooling output of the product is directly used as the inlet air for the heating equipment, and the cooling effect of the heating equipment is good. The heat dissipation output of the heating equipment is directly used as the inlet air for the air conditioning equipment. The air conditioner has a high energy efficiency ratio and significant energy-saving effect on the equipment.
Product Features
1. Complete Control & Setting Functions
● Full Chinese large-screen graphical display with multi-level password protection to prevent unauthorized operation
● Menu operation allows accurate viewing of runtime and operating status of all major components
● Expert fault diagnosis system automatically displays current faults for easy maintenance
● Automatic restart after power failure with adjustable start-up delay
● Stores up to 400-1500 historical alarm records for review
● Telemetry, tele-signal, and tele-control functions for real-time and peer-to-peer control
● Intelligent and stable constant temperature & humidity control
● Standard RS485 monitoring interface with industry standard communication protocol
2. Controller
● Controller adopts advanced fuzzy logic PID self-tuning technology
3. Compressor
● High-efficiency inverter compressor
● Adapts to varying heat load in data center, dynamic cooling, high reliability
● Eco-friendly R410A refrigerant
4. Fan
● EC fans adopted
● Fan speed can be field-adjusted based on static pressure, load, noise, etc.
5. Electronic Expansion Valve (EEV)
● Smoothly adjusts throttling opening, intelligently controls superheat
● Works with inverter compressor to save energy
● Precisely matches load and cooling capacity with wide adjustment range
● Fast response, precise cooling

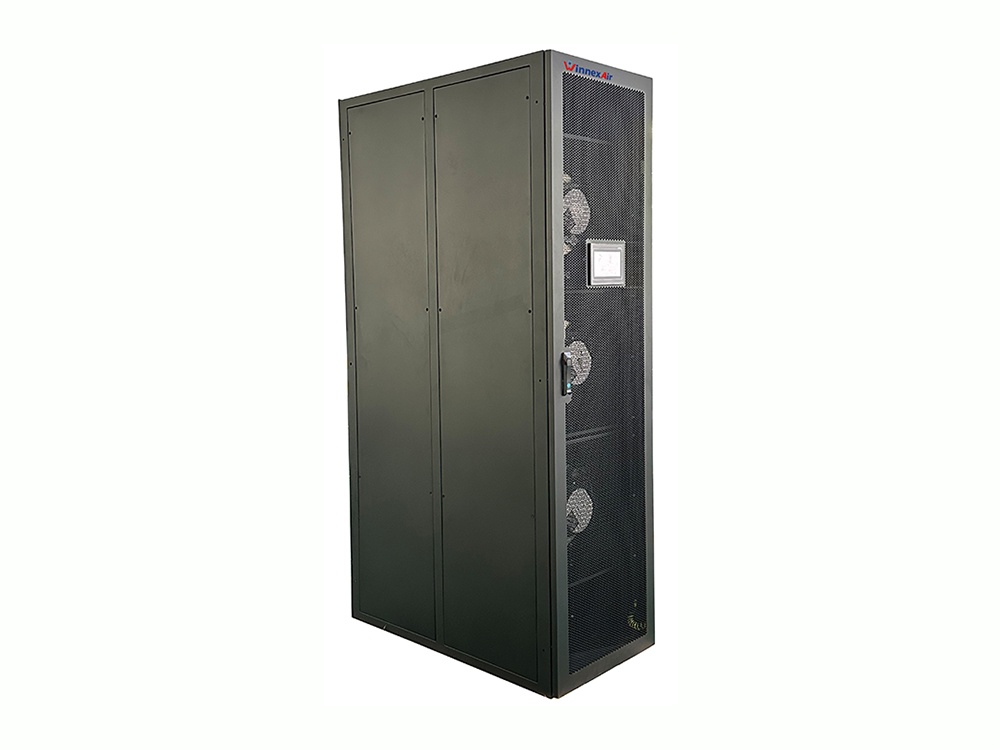

Chilled Water Series in-row Air Conditioner
● Chilled water in-row air conditioner uses chilled water as the cooling medium, offering a simple system design and high operational reliability;
● The unit dimensions match standard server racks, allowing side by side installation within the row for close coupled, high efficiency cooling;
● Significantly lower installed power and quieter operation compared to direct expansion units, reducing overall data center energy consumption and noise;
● Automatically modulates chilled water flow (typically with a proportional integral valve) according to real time load for precise energy saving control;
● PTC electric heater with staged control precisely manages supply air temperature and prevents condensation;
● Optional media humidifier provides enthalpy efficient humidification with low water quality requirements;
● EC fans (standard or optional) with field adjustable speed based on static pressure, load, noise, and other site conditions;
● Intelligent anti condensation function automatically adjusts operation under easily condensing conditions;
● Water leakage alarm triggers automatic shutdown and alarm;
● Built in differential pressure sensor continuously monitors filter clogging and provides early warning when pressure drop is excessive;
● Supports rotation, standby duty, and telemetry/tele signal/tele control functions; multiple units automatically assign primary/standby roles, and a standby unit automatically takes over in case of failure;
● Standard RS485 communication interface with standard protocol for seamless integration with BMS (building management system), enabling remote monitoring and maintenance.
Chilled Water Series in-row Air Conditioner Technical Specifications
Notes:
● Test conditions: Power supply 380V/50Hz 3N; return air temperature 37°C, wet-bulb 23.1°C; inlet water 7°C, outlet water 12°C.
● Cooling capacity selection should consider redundancy requirements.
● Water system requires pumps or chiller; regular maintenance is recommended to prevent clogging.
● For models not listed, please contact us.
